NEW

T2B SERIES
GRADE 2

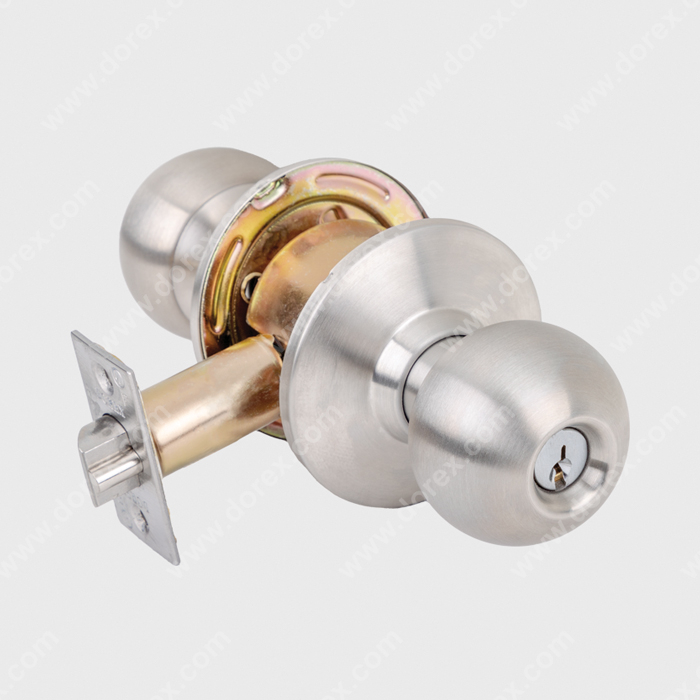

The DOREX T2B cylindrical door lock offers durable, hassle-free operation for moderate to high traffic applications.



FEATURES

  • For moderate to high traffic applications
  • Conforms to ANSI/BHMA A156.2, Series 4000, Grade 2
  • cULus listed, 3 hr fire rating
  • UL 10C Positive Pressure Rated
  • 10 Year limited warranty
  • For doors
  • 13⁄8  –  21⁄4″ (35 – 57 mm) thick
  • Built tough for enhanced security and durability
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″, 33⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets availabl
  • Stainless steel latch with 1/2″ (12.7 mm) throw
  • 3″ (76 mm) rose diameter
  • Concealed mounting plate and screws
  • ASA strike
  • Keyed functions include 6-pin cylinder, Schlage “C”  keyway with 2 keys

Full keying services available. Other common and high security keyways available.

FUNCTIONS

00Dummy, single
10Passage
42Privacy
53Entry keyed function
53LCEntry, housing only (less core) keyed function
70Classroom keyed function
70LCClassroom, housing only (less core) keyed function
80Storeroom keyed function
80LCStoreroom, housing only (less core) keyed function
89Exit

FINISHES

  C3 POLISHED BRASS

  C32D SATIN STAINLESS STEEL

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadT2B Series – 01.034

Installation Instructions

downloadT2B Series – Installation Instructions
